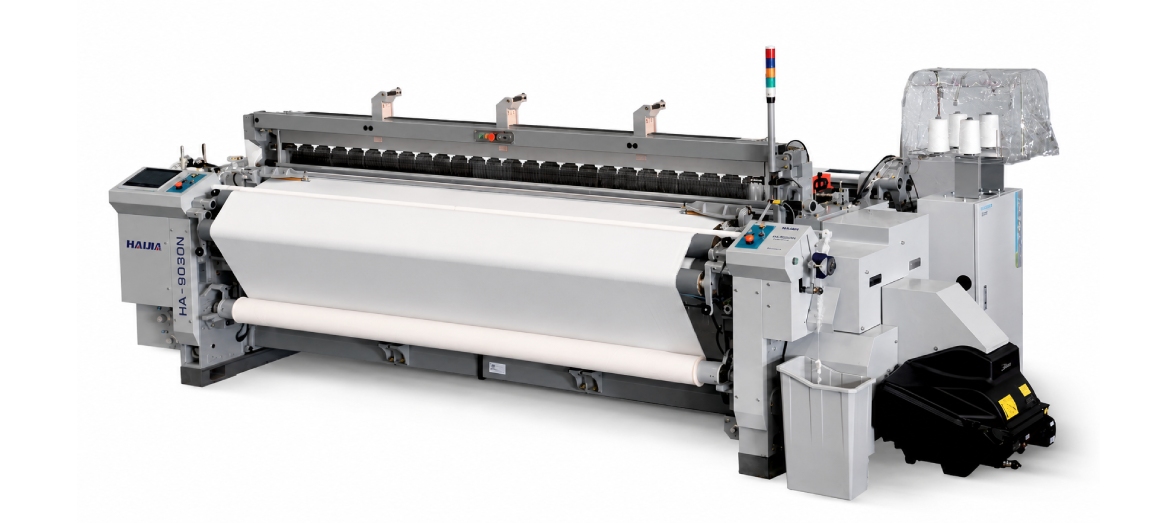

HAIJIA HA-9030N Series Air Jet Looms

The HA-9030N Series represents the next generation of HAIJIA air jet looms — built on a philosophy of continuous innovation and inherited precision. Designed for modern textile mills, this series delivers exceptional weaving performance across a wide range of yarn types, from spun counts as fine as Count 100 to heavy filaments up to 1250D. With a maximum weft insertion rate of 2300 m/min and reed widths from 170 cm to 380 cm, the HA-9030N is engineered to meet the demands of high-speed, high-volume fabric production without compromise.

Marketed in India by Golden JD Group, the HA-9030N combines a robust single-piece wall board frame weighing 700 KGS with precision-engineered components including a "U" shaped beating-up shaft, DLC-coated sub nozzles, and SMC flow meter air control. The result is a loom that delivers consistent fabric quality, reduced air consumption, and lower maintenance costs — giving textile manufacturers a decisive edge on the production floor.

Maximum weft insertion rate of 2300 m/min for high-speed production
Available in 10 reed widths from 170 cm to 380 cm
Supports Crank, CAM, Electronic Dobby and Jacquard shedding
DLC sub nozzle and SMC flow meter for efficient air management

Features

Advanced Air Jet Loom Features

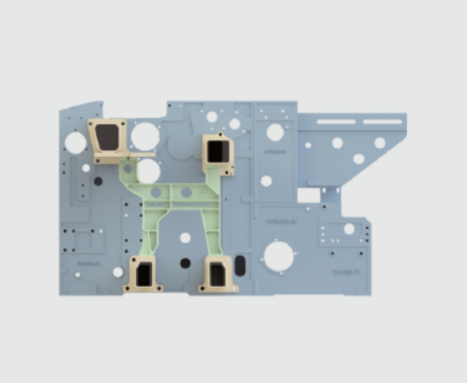

Single Piece Wall Board

Weight 700 KGS (2 Pcs), Height 920 mm. Monolithic cast frame provides exceptional rigidity and reduces vibration for precise, stable weaving.

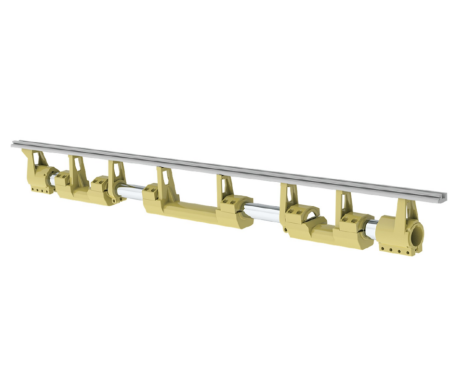

"U" Shaped Precise Beating

U-profile beating-up shaft with four-link (narrow) and six-link (wide) configurations and rocker shaft middle support for consistent fabric density.

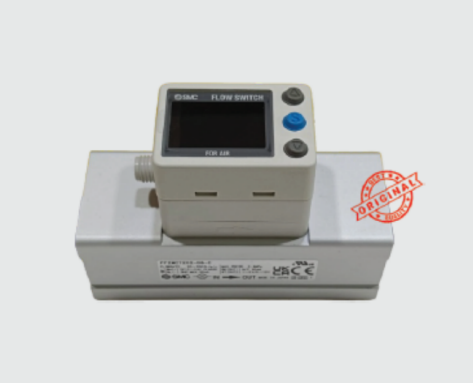

SMC Flow Meter

Original SMC-branded precision flow switch monitors and controls compressed air delivery in real time, ensuring stable weft insertion on every pick.

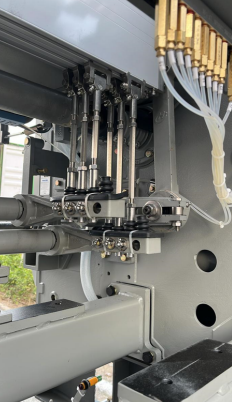

Auto Lubrication

Centralised automatic lubrication system reduces manual maintenance, protects critical components and extends machine service life significantly.

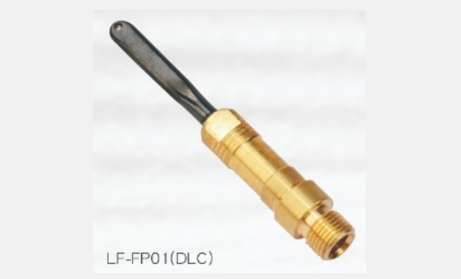

DLC Sub Nozzle

Diamond-Like Carbon (DLC) coating on sub nozzles (LF-FP01) dramatically increases wear resistance and maintains consistent air-jet performance over extended run times.

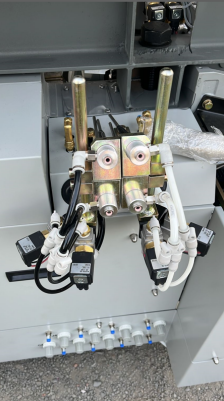

Lowest Air Consumption

Advanced nozzle geometry and precision valve timing minimise compressed air usage — lowering energy costs without compromising weft insertion quality.

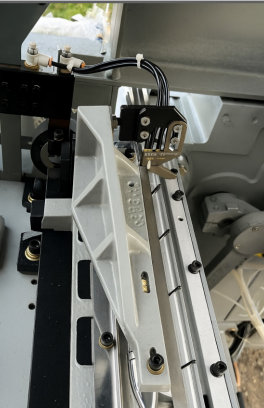

Air Gripper System

Pneumatic gripper ensures positive weft yarn control at both selvedges, reducing end breaks and improving fabric edge quality at high speeds.

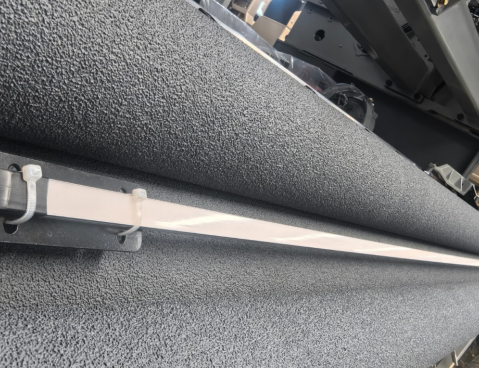

Fabric Checking Light

Built-in LED inspection lighting illuminates the fabric surface directly at the fell line, making defects visible for real-time quality monitoring without stopping the machine.

Specification

HA-9030N Air Jet Loom Technical Specification

Item	Specification	Optional
Model	HA-9030N	-
Nominal Reed Width	170, 190, 210, 230, 260, 280, 300, 340, 360, 380 CM	-
Weaving Range	Spun: Count 100 - Count 2.5 Filament: 20D - 1250D	-
Weft Selection	2, 4, 6 Nozzle	-
Power	Super start motor drive 2.2 KW Crank Shedding \| 3.0 KW CAM Shedding 3.7 KW Dobby Shedding \| 6.5 KW Jacquard Shedding	Direct Drive Motor
Weft Insertion Rate	Maximum 2300 m/min	-
Reed	Harmony HAIJIA Air Saving E-Reed	-
Shedding	Crank connecting rod: 4 pcs / 6 pcs Heald Frame Positive CAM: Up to 10 pcs Heald Frame Electronic Dobby: Up to 16 pcs Heald Frames Jacquard	8 pcs Heald Frame
Let Off	Electronic let off	Double warp beam
Beam Flange Diameter	800 mm	914 mm / 1000 mm
Take Up	Electronic take up Standard density 25 - 300 picks/inch	-
Roll Cloth Diameter	Max. 600 mm for CAM, Dobby, Jacquard shedding 520 mm for Crank shedding	-
Beating Up	"U" shaped beating up shaft Four-link beating-up for narrow width Six-link beating-up for wide width Rocker shaft middle support	-
Length Measurement & Weft Storage	Electronic weft feeder	-
Selvage	Planetary gear type selvage device	Pneumatic folding edge device
Yarn End Treatment	Discarded take-up 2 pcs drum-type	-
Weft Cutting	Mechanical weft cutting device	Electronic weft cutting device
Lubrication	Main transmission part oil bath type, manual centralised oil supply	Electric central oil supply
Stop Machine Device	Weft yarn: photoelectric weft feeler, double probe Warp yarn: electrical contact six-row dropper Stop reason shown on display with multi-function 4-colour light	-
Automation	Inverter to adjust speed Memory card function Automatic weft extraction device	-
Air Saving	Main Nozzle	-
