Water Jet Looms in Surat

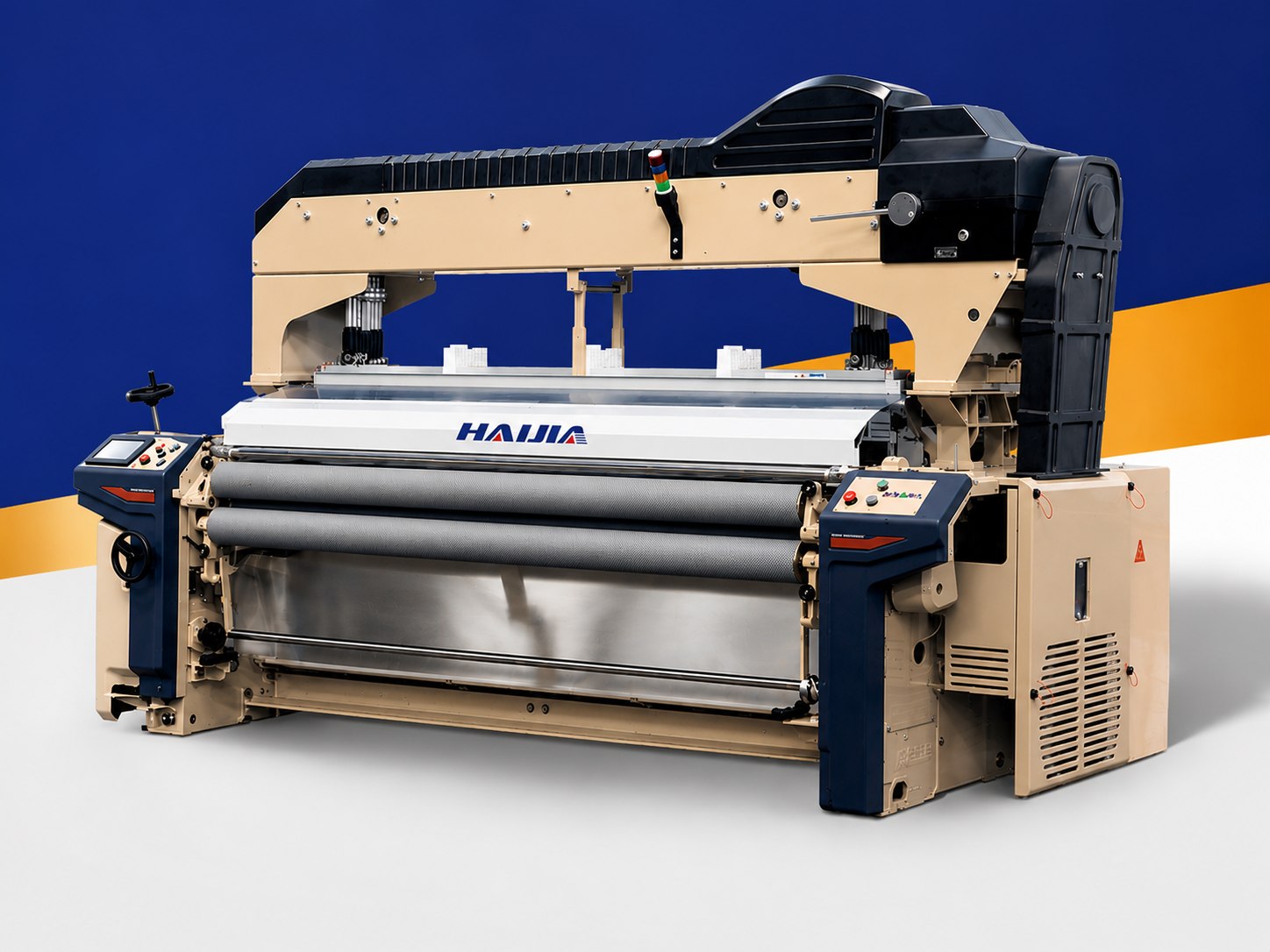

HAIJIA Water Jet Looms
HAIJIA Water Jet Looms are designed for precision, quality and durability in modern textile production. Built with strong metallurgy, low-maintenance engineering and advanced water-saving technology, these looms deliver consistent performance for high-volume weaving units.
The water jet loom range includes multiple models such as HW-3851, HW-3873, HW-6006, HW-6012, HW-8010 and HW-001. Each model is engineered for different fabric requirements, weft density needs and production capacities.
- Precision, quality and durability focused water jet loom technology
- 15% more production with less downtime
- 10% water saving for efficient textile production
- 2X double life with world-class metallurgy
- Corrosion-free painting technology for long service life
Features
Water Jet Loom Advantages
15% More Production
Designed to improve weaving output and support high-production textile manufacturing.
10% Water Saving
Efficient water jet technology helps reduce water consumption during weaving operations.
Low Maintenance
Reliable machine construction reduces service needs and supports continuous production.
Less Downtime
Stable mechanical systems help reduce production interruptions and improve mill efficiency.
Corrosion Free
Rust-free painting technology protects the machine body and improves long-term durability.
High Grade
Manufactured with high-grade components for stable and dependable performance.
World Class Metallurgy
Strong metallurgy ensures durability, structural stability and long machine life.
2X Double Life
Engineered for extended machine life and reliable operation in demanding textile environments.
Models
Water Jet Loom Models

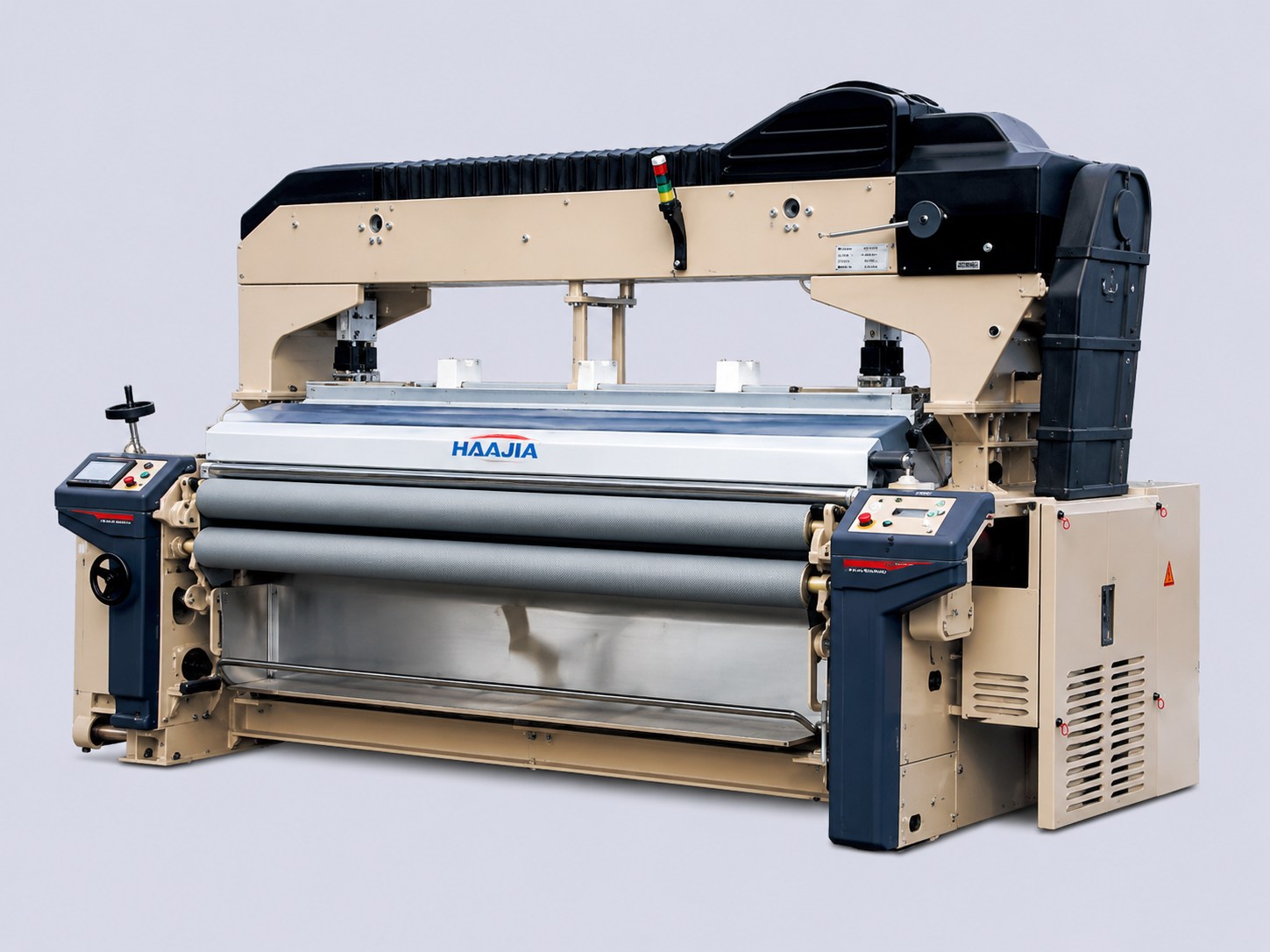

HW-3851
- Maximum weft density: 100 pick/inch
- Hollow beating up shaft
- Linear weight: 25 kgs/100 Mtr.

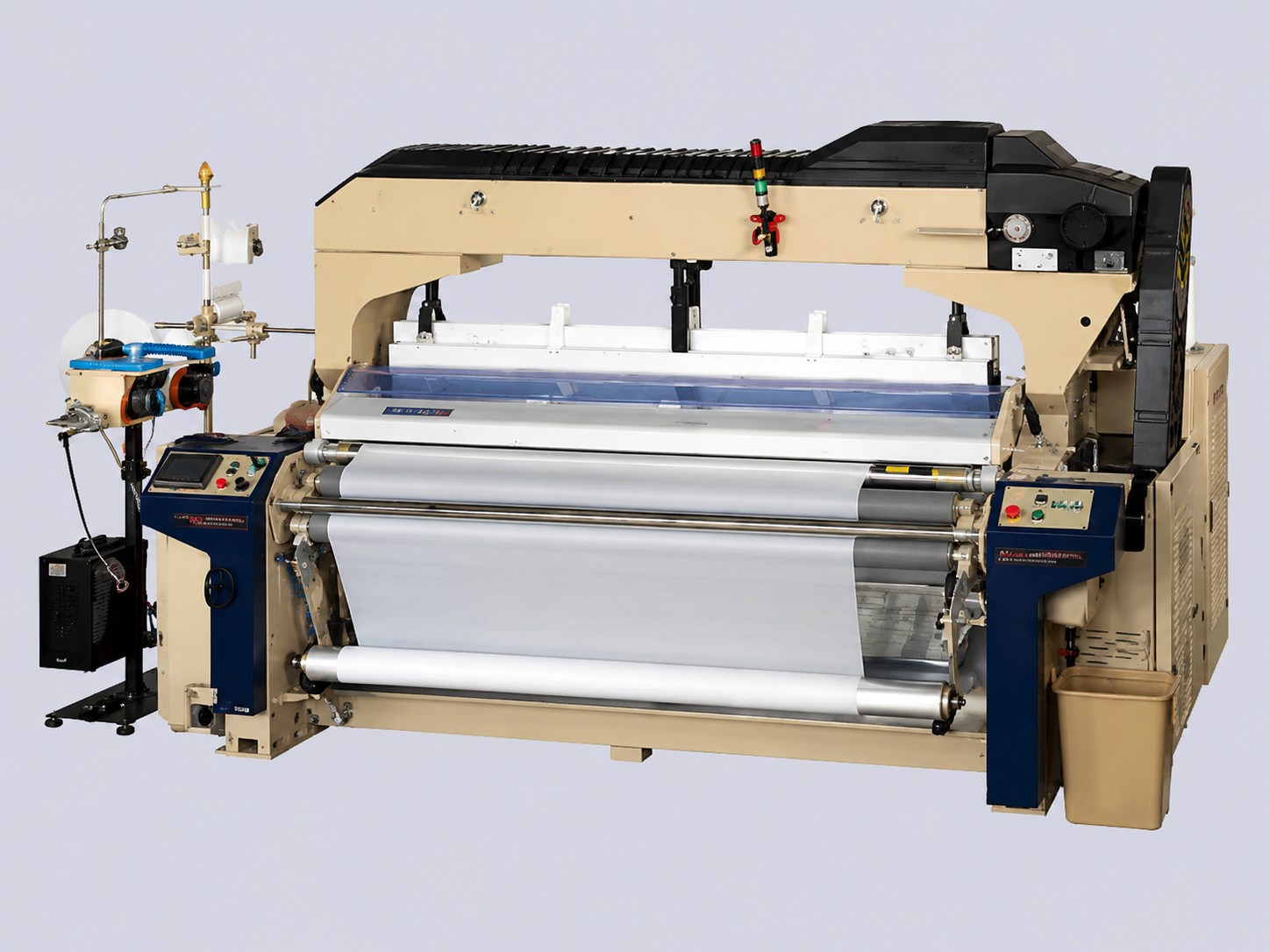

HW-3873
- Maximum weft density: 150 pick/inch
- Hollow beating up shaft
- Linear weight: 40 kgs/100 Mtr.
New Arrival

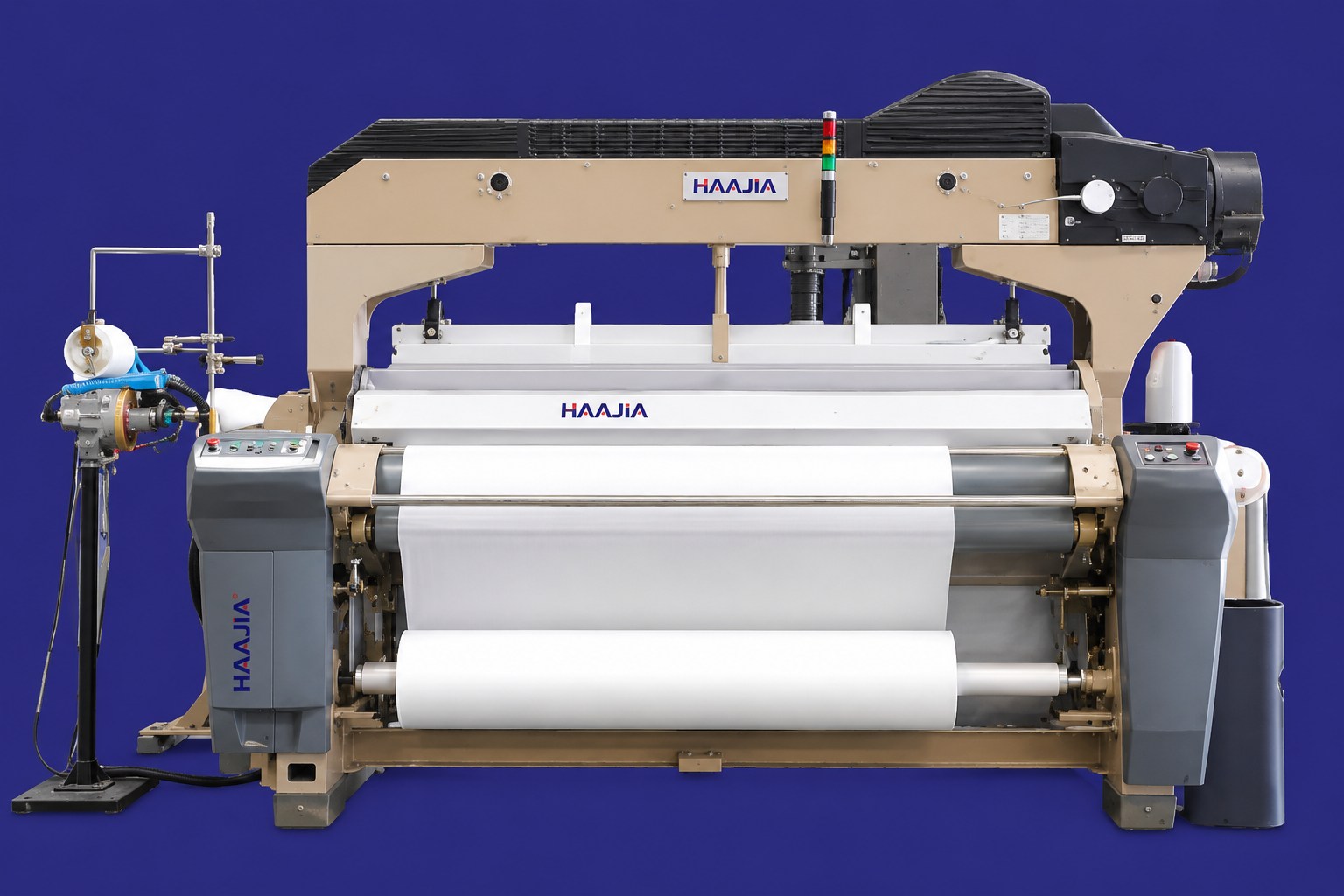

HW-6006
- Maximum weft density: 160 pick/inch
- Single Wall
- Linear weight: 45 kgs/100 Mtr.

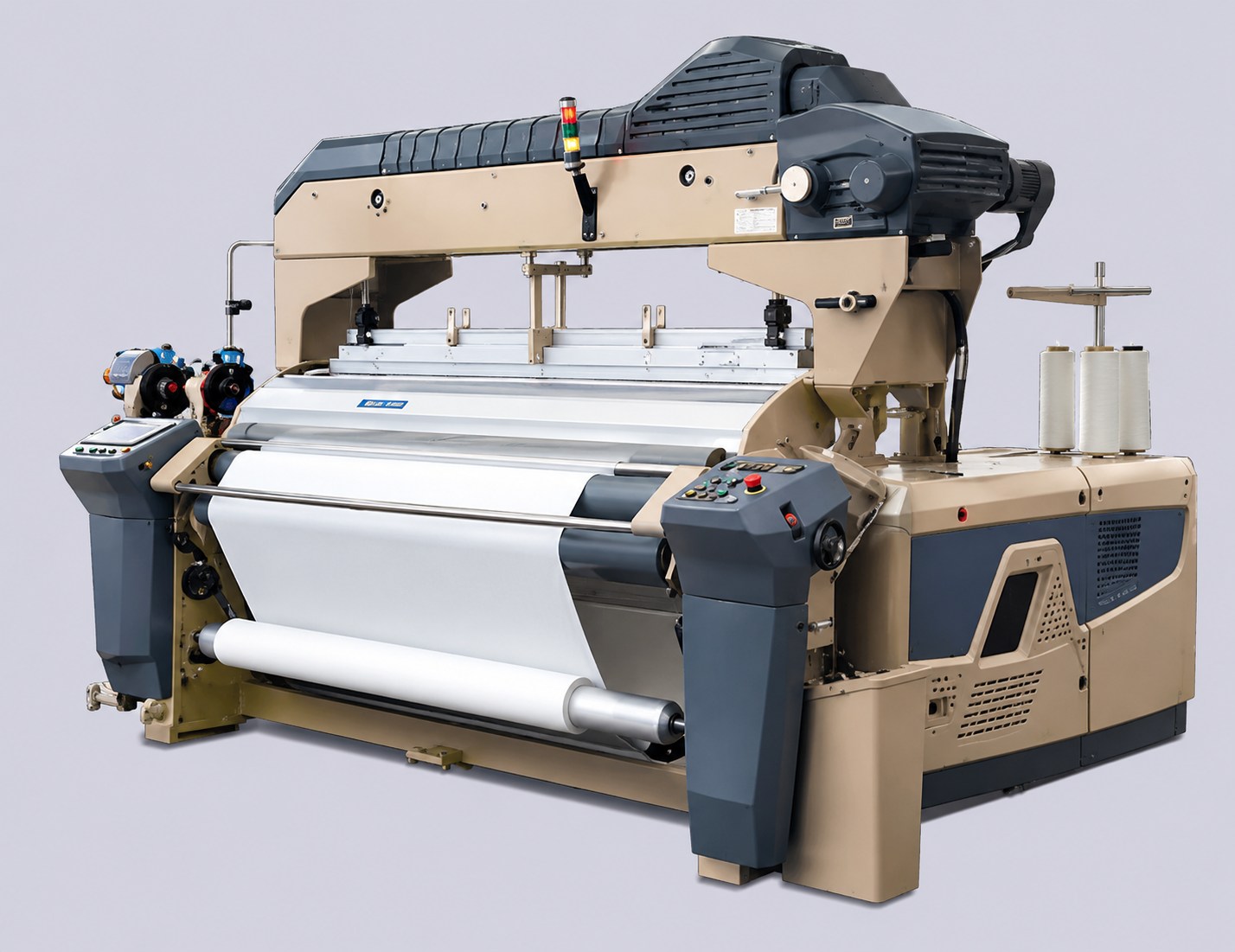

HW-6012
- Maximum weft density: 196 pick/inch
- Solid beating up shaft
- Linear weight: 55 kgs/100 Mtr.

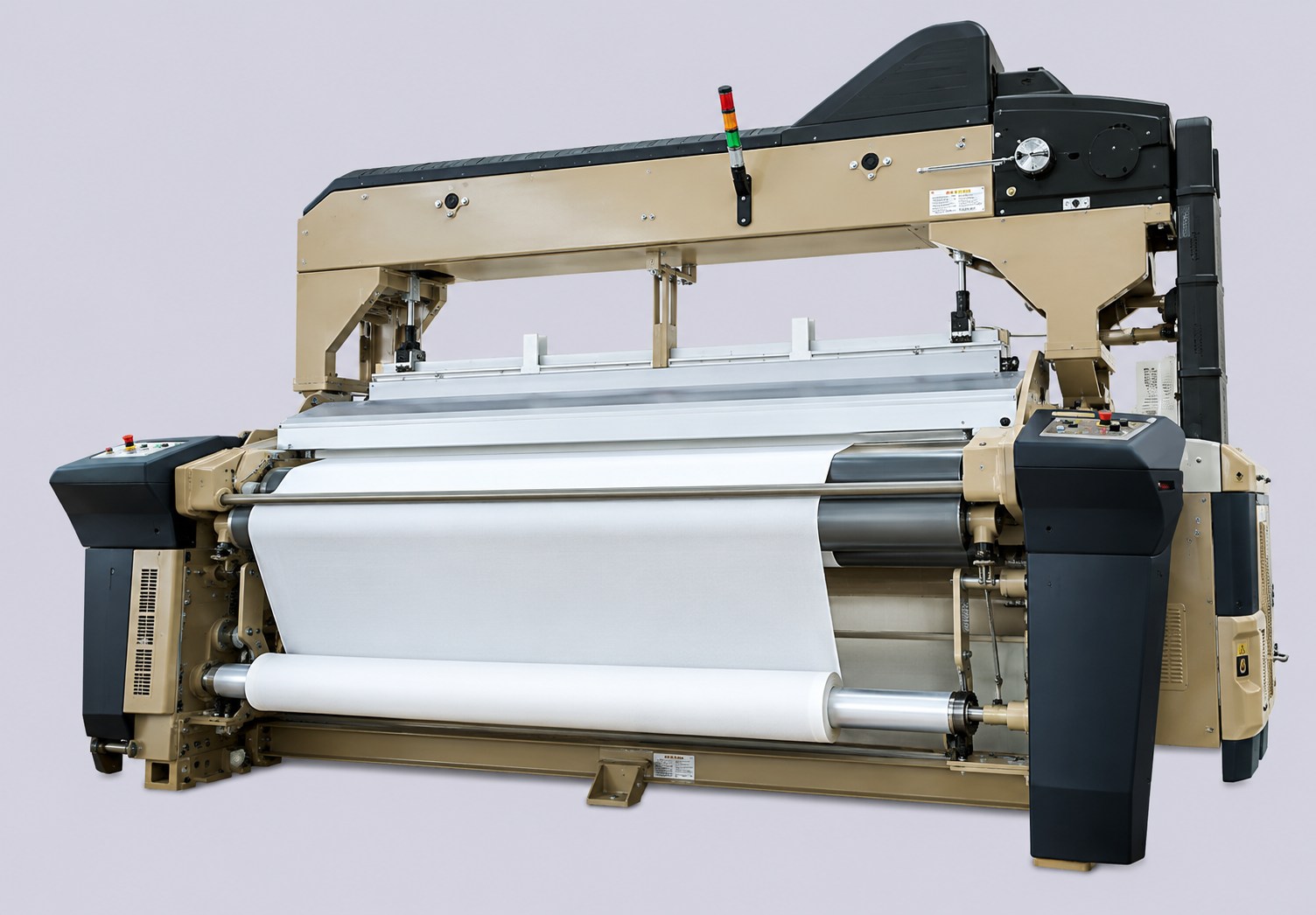

HW-8010
- Maximum weft density: 205 pick/inch
- "U" shaped solid beating up shaft
- Linear weight: 65 kgs/100 Mtr.
- ROJ Electric Panel
- U Shaped Nozzle
New Arrival

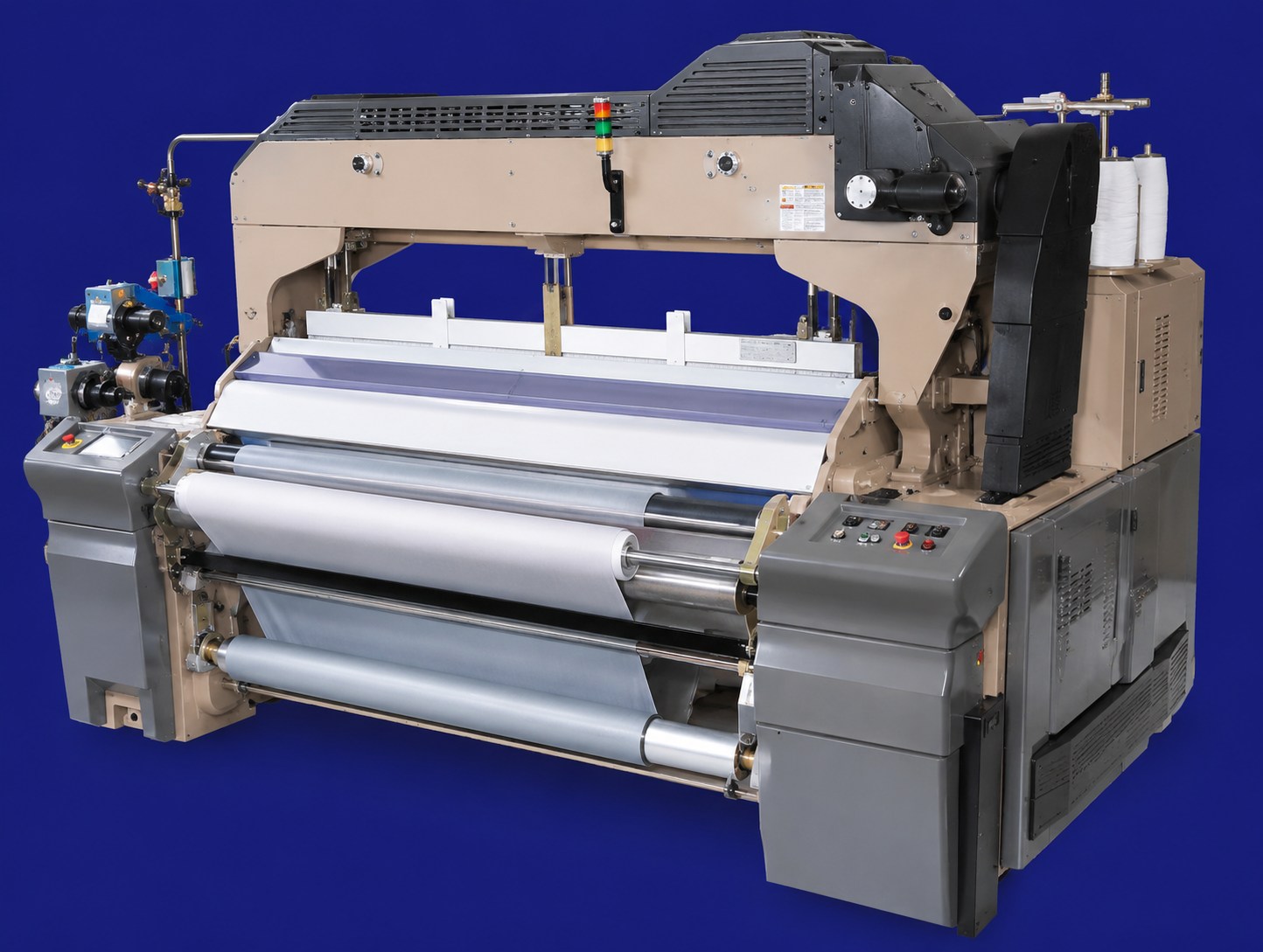

HW-001
- Maximum speed: 1500 rpm
- Directly driven by a Servo Motor
- Ultra high speed operation
Cam Introduction
Positive Conjugate Cam Shedding Device
Haijia independently developed a positive conjugate cam shedding device, which is widely used in various types of water-jet loom shedding. It can weave more than 150 kinds of fabrics within 12 cycles, such as plain weave, twill weave, satin weave and blackout fabrics.
High Performance
Built for reliable and accurate shedding operations across different fabric requirements.
High Production Efficiency
Supports faster fabric production with stable cam shedding performance.
Low Maintenance
Designed for durability, reduced maintenance and stable long-term operation.
Cam Models
Cam Shedding Models

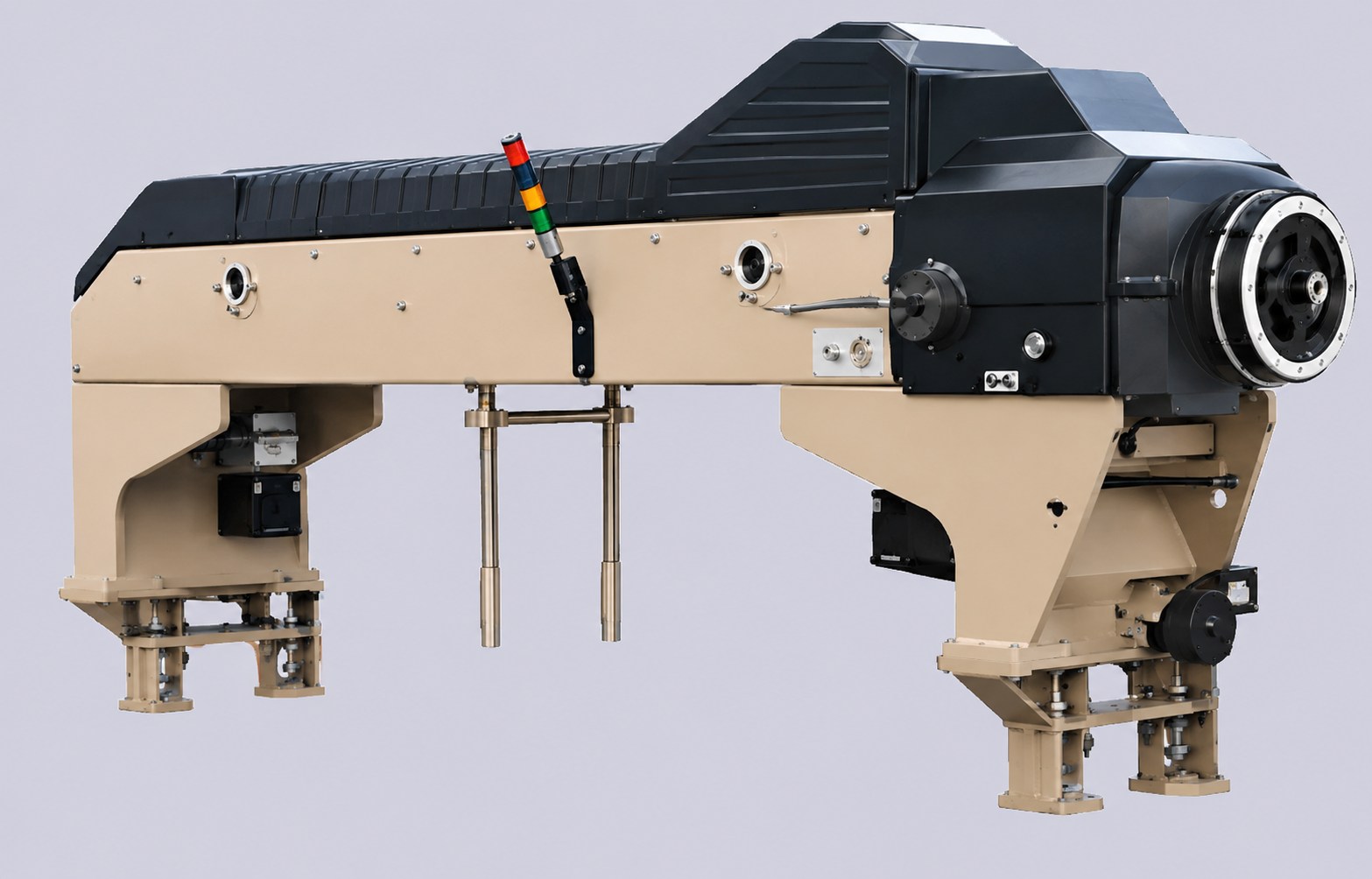

HJ-C12
- Maximum speed: 800 rpm
- Heald frame spacing: 14 mm
- Maximum capacity: 12 Shafts

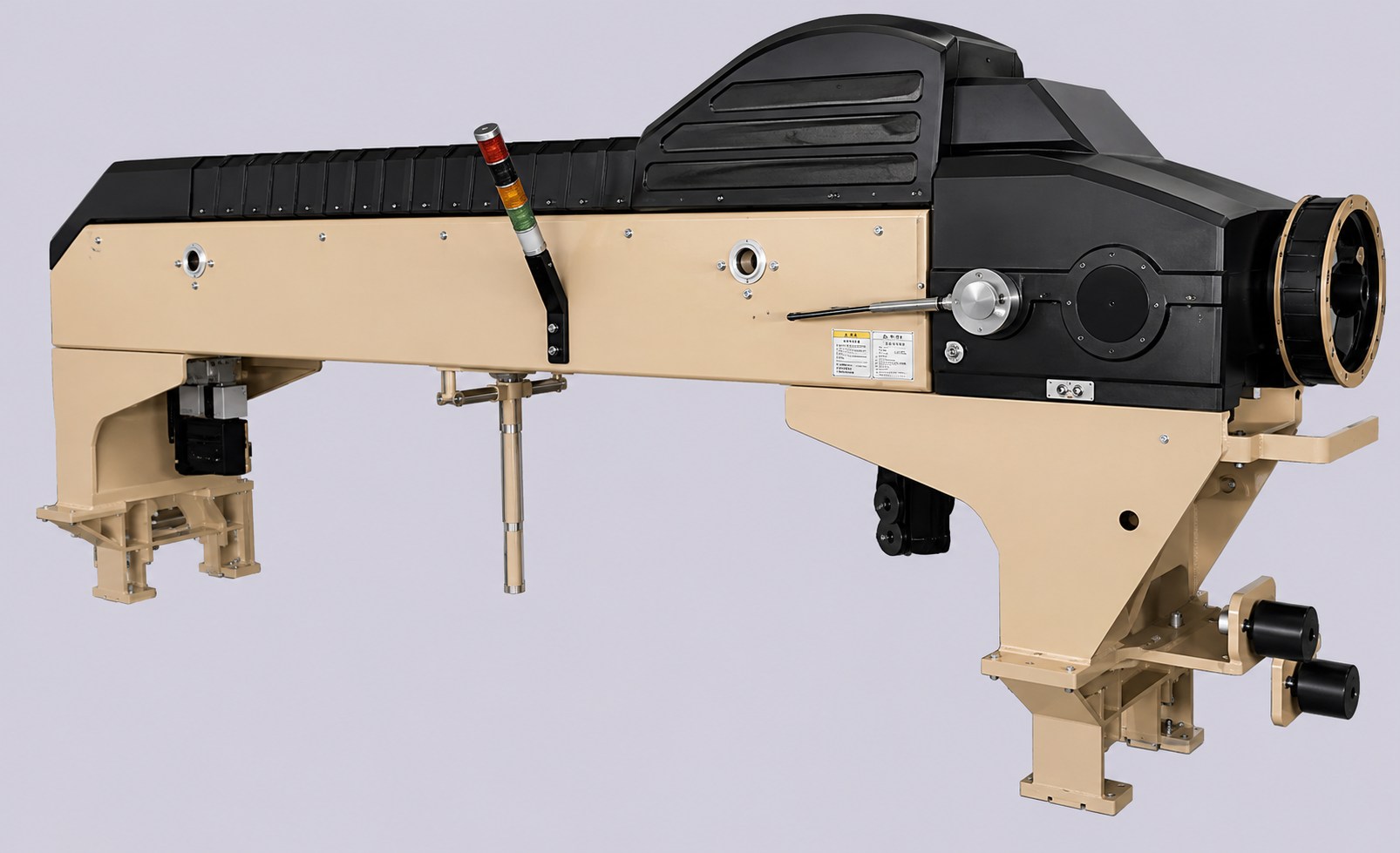

HJ-C21
- Maximum speed: 750 rpm
- Heald frame spacing: 12 mm
- Maximum capacity: 14 Shafts

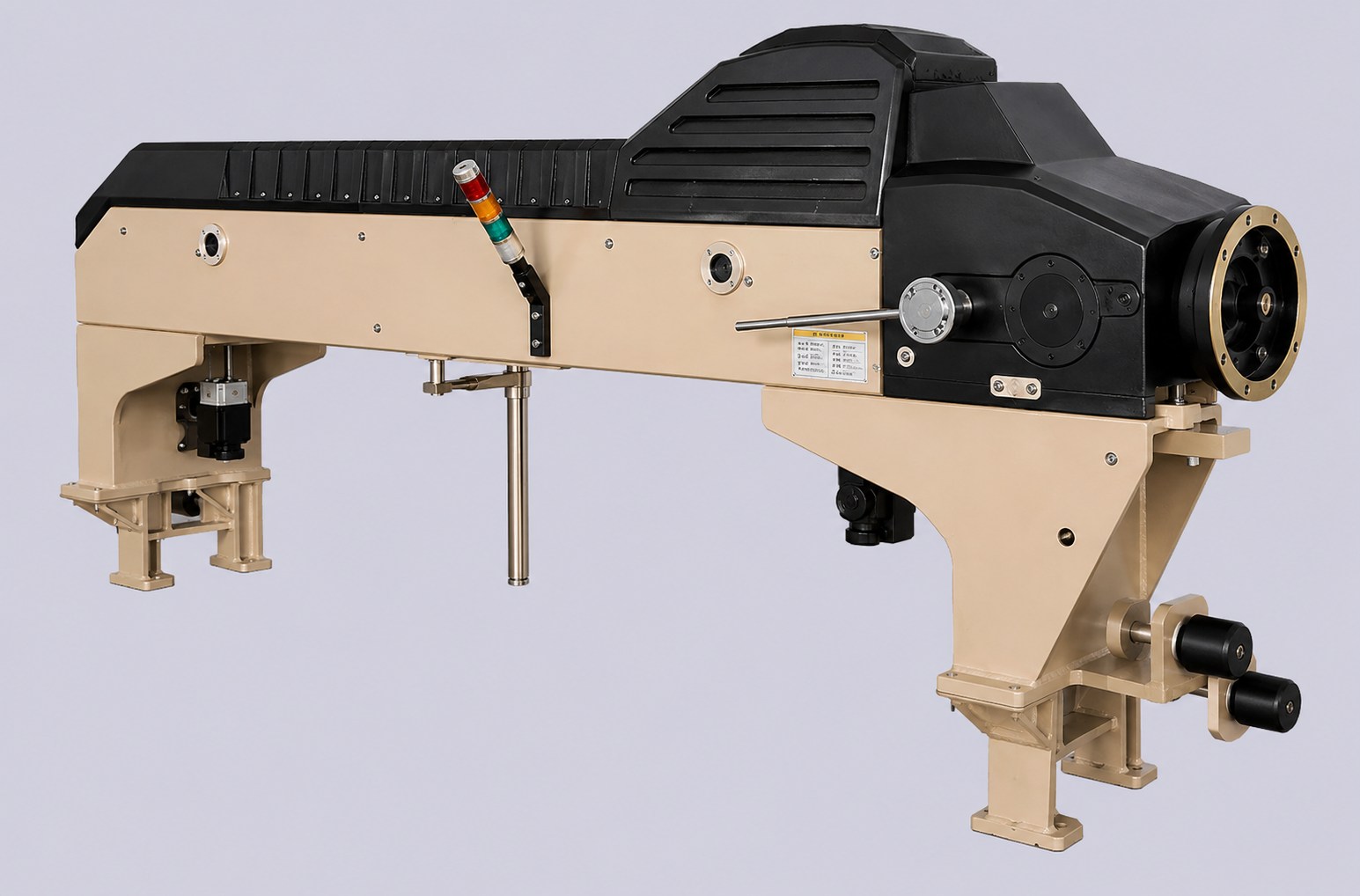

HJ-C31
- Maximum speed: 1000 rpm
- Heald frame spacing: 14 mm
- Maximum capacity: 12 Shafts

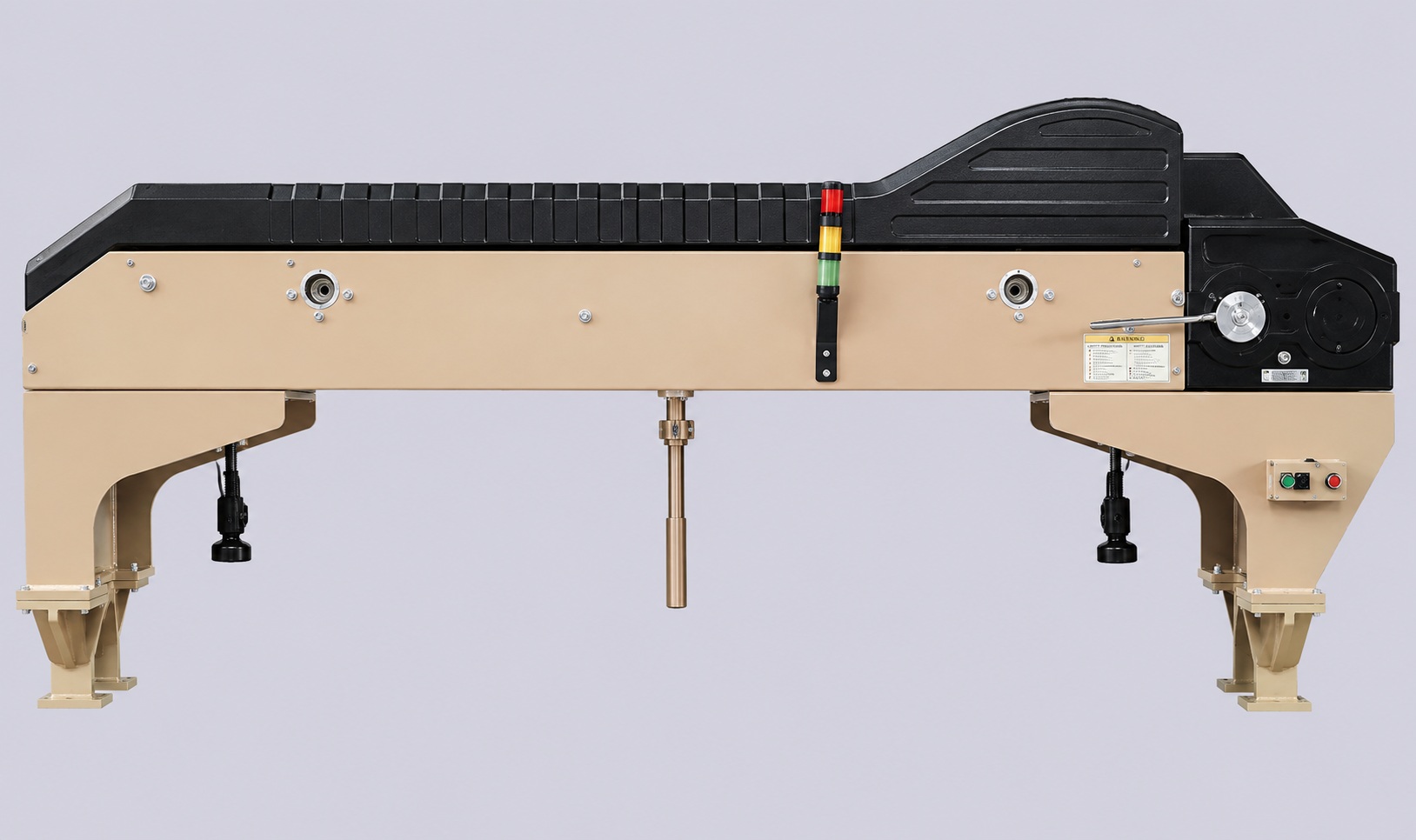

HJ-C50
- Maximum speed: 1000 rpm
- Heald frame spacing: 14 mm
- Maximum capacity: 10 Shafts
- Direct drive motor
Specifications
Water Jet Loom Technical Specifications
| Item | Specification | Optional |
|---|---|---|
| Model | HW-3851, HW-3873, HW-6006, HW-6012, HW-8010 | - |
| Nominal Reed Width | 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 cm | - |
| Weft Selection | 1, 2, 3, 4 Nozzle | - |
| Electric Panel | ROJ, Sanhe, Xinliao, Innovance | - |
| Starting Mode | Super Start Motor Drive | Direct Drive Motor |
| Motor Capacity | 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.0KW | - |
| Pump | Single Pump | Double Pump |
| Length Measurement & Weft Storage | Electronic Length Measurement (FDP) | (RDP) Mechanical Length Measurement |
| Shedding |
Crank Shedding: 4 pcs Heald Frame, 6 pcs Heald Frame Positive Cam Shedding: 6, 8, 10 pcs Heald Frame Active Dobby: 16 pcs Heald Frame E-Dobby, M-Dobby |
8 pcs Heald Frame 12, 14 pcs Heald Frame |
| Let-off |
Negative Loose Warp Left and Right Double Bearing, 2-Roll Mode |
Positive Loose Warp Device |
| Maximum Tension | 500kg, 1000kg | - |
| Diameter of Beam Flange | 800mm | 914mm, 1000mm |
| Roll Cloth Diameter | Maximum is 520mm | - |
| Cloth Roll Path | S type, L type | - |
| Beating Up |
Hollow Beating Up Shaft, 4 linkage, 6 linkage "U" Shaped Beating Up Shaft |
Solid Straight Shaft Beating Up |
| Weft Stand | Floor Fixed Type 2 pcs Yarn Supply/Color | - |
| Selvage | Mechanical Planetary Model | Independent Salvage |
| Yarn End Treatment | Spindle False Twisting Method | - |
| Weft Cutting | Mechanical Scissors for Weft Cutting | - |
| Dehydration | Micro Slit Tube With Mech. Blower |
Water Absorbing Strip Electric water suction motor Buoyancy Air-Water Separator |
| Electronic |
Optical Fiber Type Feeler Touch Screen, Control Preparation, Start, Stop, Inching and Reverse Inching Display of Output, Speed, Efficiency, Shutdown times, etc. Four-color indicator light indicates stopping reason |
Photoelectric Type |
| Automation and Labor Saving | Automation Water Replenishment Valve, Automatic Centralized Refueling | Variable Frequency Speed Regulation |
